Features of this product:
Matching Hardness: Heat-treated to HRC52+/-1, meeting the hardness requirements for pad printing steel sheets.
Stable Printing Effect: Meets standards for finish and flatness, free of scratches, impurities and blowholes, with no ink leakage.
Long Life: Base material with qualified element content, meeting standards and featuring strong durability.
Low Cost: Direct supply from source factory, with more competitive wholesale prices.
Clichés Machining Size: Any special size cliches can be made to order. Thicknesses:0.25mm, 0.3mm and 0.5mm is OK.
With Holes: MOQ 10 No Holes: No MOQ
Welcome to purchase samples for testing
Clichés Machining Size: Any special size cliches can be made to order
WINNEO Pad Printing Thin Cliché

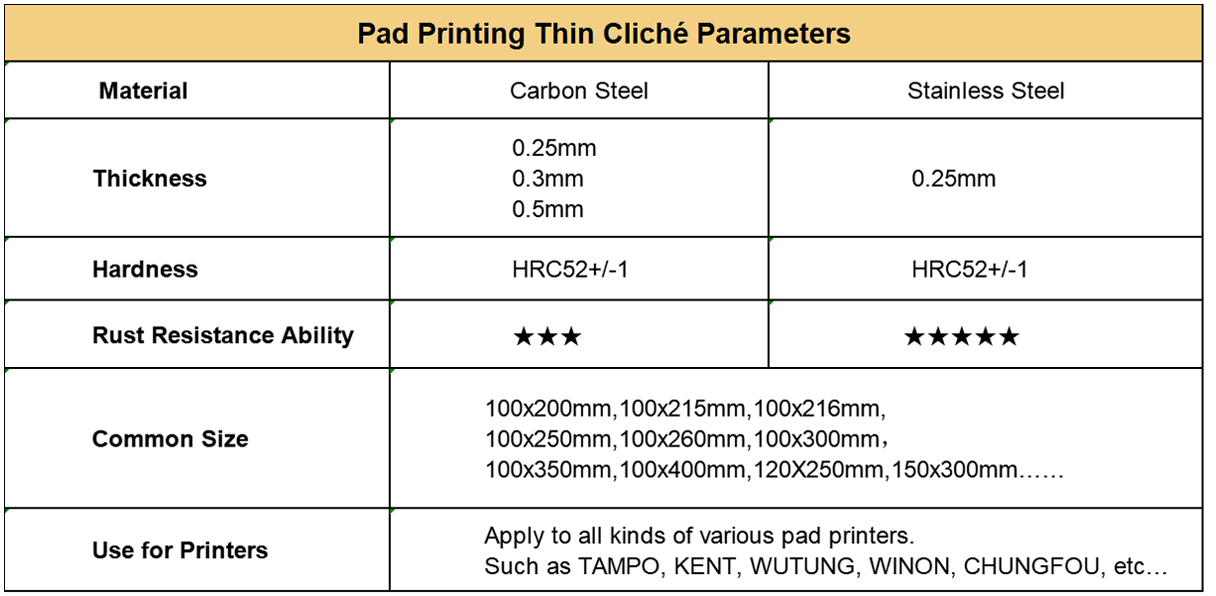

WINNEO Pad Printing Thin Cliché Parameter

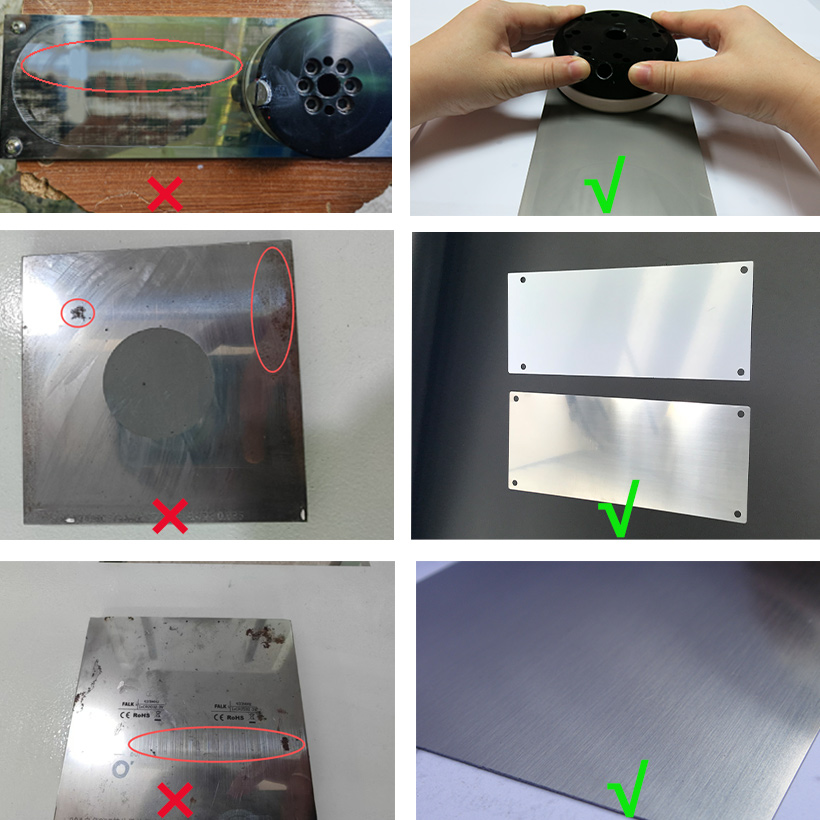

Customer Concerns
Ink leakage: There are many factors that lead to oil leakage during the printing process. The factors of the steel plate are usually reflected in the surface treatment, resulting in insufficient flatness and smoothness of the steel plate.
Rusting: There are many factors that cause steel plates to rust. The factors of steel plates are usually reflected in the raw materials. If qualified rust-resistant base materials are not used, the steel plates will be easily rusted during use.
Not scratch-resistant: The lack of scratch resistance of pad printing steel plates is usually due to inadequate heat treatment. If this process is not done well, the steel plates will not reach the required hardness and it will be difficult to achieve the expected number of prints.
WINNEO Standard of Pad Printing Thin Cliché
Pad Printing Thin Cliché Raw Material
WINNEO Pad Printing Thin Cliché Raw Material Component Standards
This is the original composition test report for the raw materials used in WINNEO Pad Printing Thin Cliché. This report proves that the raw materials used in our Pad Printing Thin Cliché meet quality standards. Qualified raw materials ensure that subsequent steel plate manufacturing complies with relevant standards.
WINNEO Pad Printing Thin Cliché QC
WINNEO Packaging Standards
WINNEO Pad Printing Thin Clichés are packaged in a plastic inner packaging, a cardboard box, and a reinforced wooden crate. This triple packaging ensures product stability, eliminating the need to worry about damage during transport. WINNEO clear packaging labels make it easy to quickly verify order information.
WINNEO After-sales Standards
Efficient response within 24 hours, with dedicated personnel assigned for follow-up. Lifetime one-on-one online technical support.
If You Need
We can make the special size thin steel plates with holes or not according to your request!

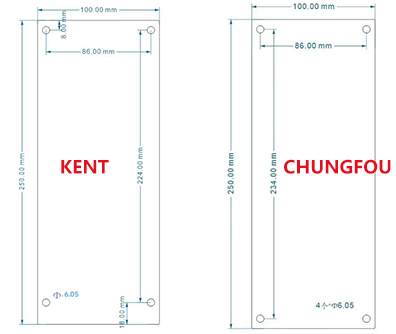

KENT & CHUNGFOU Pad Printing Thin Cliché Hole Position Drawing.

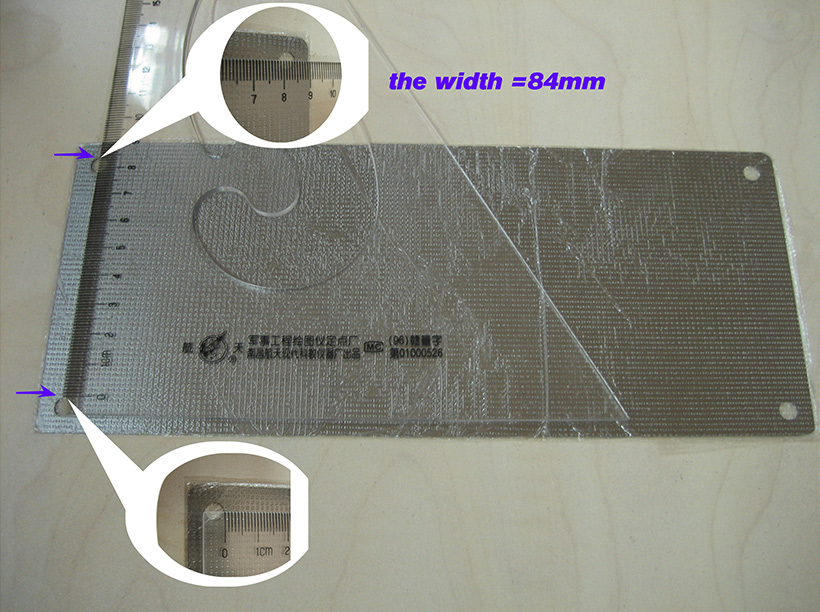

Measuring these data is essential for punching holes in Pad Printing Thin Cliché.

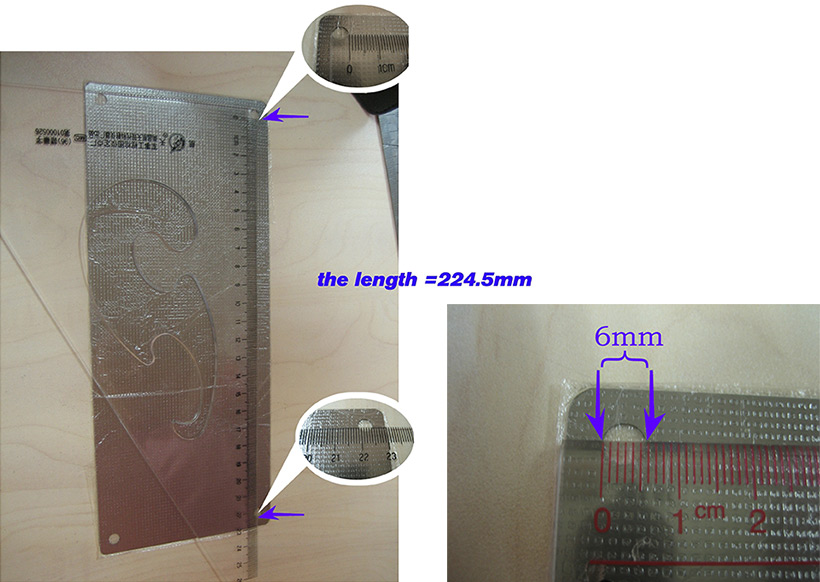

Measuring these data is essential for punching holes in Pad Printing Thin Cliché.
Customers Recommend
WINNEO Pad Printing Plates are highly praised by customers.
FAQ
1.What is the service life of a pad printing plate?
Its service life is affected by factors such as substrate material, usage frequency, and printing environment; specifically, it needs to be determined based on actual usage conditions.
2.How to choose the right pad printing plate specifications?
Selection depends on the printing equipment, the size and shape of the printing pattern, and production requirements. We recommend providing specific printed products, printing positions, and pattern files, and our professional pre-sales team will offer accurate support.
3.Will all pad printing plates rust? How to extend the rust resistance duration and service life of pad printing plates?
1. Rusting is inevitable for pad printing plates made of non-chromium steel or non-stainless steel.
2. You can extend their rust resistance duration and service life in the following ways:
① Thoroughly clean and dry the plates before and after printing; when printing is paused for more than 1 hour, apply a thin layer of anti-rust oil on the plate surface or cover it with anti-rust film/paper for temporary rust protection.
② Wrap each plate with anti-rust paper, or seal it in a bag after applying anti-rust oil; ensure transportation and storage conditions are "dry, light-proof, corrosion-free, and at room temperature".
③ Prioritize purchasing plates from formal manufacturers, as they offer better guarantees for raw material quality and quality control systems.
4.Can you customize steel plates of special specifications?
Yes, we can customize pad printing thick plates and thin plates according to your specific requirements, including thickness, size and pattern.
Características de este producto:Alta dureza:Tratado térmicamente a HRC52+/-1, cumpliendo con los requisitos de dureza para láminas de acero para tampografía.Efecto de impresión estable:Cumple con los estándares de acabado y planitud, libre de rayones, impurezas y orificios, sin fugas de tinta.Larga vida:Material base con contenido de elementos calificados, cumpliendo estándares y presentando gran durabilidad.Bajo costo:Suministro directo desde fábrica fuente, con precios mayoristas más competitivos.
Details
Características de este producto:Alta durezaGeneralmente fabricados con materiales como acero recubierto de aceite y acero cromado, alcanzan una dureza de HRC 63+/-1, lo que garantiza una resistencia al desgaste a largo plazo. Las placas de acero cromado pueden soportar entre 200.000 y 300.000 ciclos de impresión. Las placas de acero recubiertas de aceite pueden soportar más de 50.000 ciclos de impresión. Existen numerosos factores que afectan su vida útil. Este es un valor teórico comprobado, y la vida útil real prevalecerá. Alta planitud y suavidadUtilizando acero de alta calidad y sometidos a un procesamiento meticuloso, logran una alta planitud y suavidad, lo que garantiza un raspado limpio y una tinta sin fugas, cumpliendo con los requisitos de la impresión gráfica fina. Alta resistencia a la corrosiónProporciona una excelente resistencia al óxido y a la corrosión, lo que lo hace adecuado para su uso en una variedad de entornos de trabajo, resistiendo el óxido y extendiendo su vida útil. Gama completa de especificacionesDisponemos de una amplia gama de grosores y tamaños. Las planchas de tampografía se ofrecen en tamaños de 3×4, 4×4 y 3×6. También podemos personalizarlas según sus necesidades.
